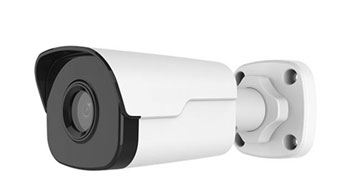

MG M185IPC-2MPDPF36(60)-IR 4MP WDR Network IR Mini Bu

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format
  • ONVIF Conformance
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)

Camera
Sensor 1/3", progressive scan,4.0 megapixel, CMOS
Lens 3.6mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
3.6mm 81 32.4 16.2 8.1


Angle of View(H) 86.4°
Angle of View (V) 43.6°
Angle of View (O) 112.3°
Adjustment angle
Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°


Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F2.0, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB

Video


Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max.30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas

Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API

Interface
Network 1 RJ45 10M/100M Base-TX Ethernet

General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6 W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45kg(0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported




Camera
Sensor 1/3", progressive scan,4.0 megapixel, CMOS
Lens 3.6mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
6mm 135 54 27 13.5


Angle of View(H) 49.9°
Angle of View (V) 27°
Angle of View (O) 61.4°
Adjustment angle
Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°


Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F2.0, AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB

Video


Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max.30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas

Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection、Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API

Interface
Network 1 RJ45 10M/100M Base-TX Ethernet

General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6 W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45kg(0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
