Network cameras

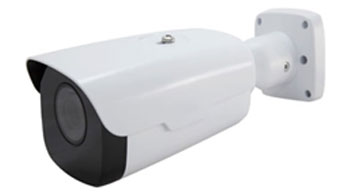

MG M185IPC-2MX10-IR 2MP WDR Starlight AF Network IR Bullet Camera V2.3_

  • Starlight illumination
  • Up to 120 dB WDR(Wide Dynamic Range)
  • SmartIR, up to up to 100m (328ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Day/night functionality
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • Customized OSD

Camera

Sensor 1/2.8", progressive scan,2.0megapixel, CMOS
Lens 4.7~47mm; P-Iris, AF automatic focusing and motorized zoom lens
Angle of View(H) 65°(wide)~ 9°(tele)
Shutter Auto/Manual, 1/10~1/100,000s
Minimum Illumination Colour: 0.002 Lux (F1.4, AGC ON)
0 Lux with IR on
Iris Auto/Manual, F1.6~F3.0, DC-Iris
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Smart-IR ,up to 100m (328ft) IR range
Defog Digital Defog
WDR 120dB

Video


Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps;
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas

Smart

Behavior Detection Intrusion, cross line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ

Storage

Edge Storage Micro SD, up to 128 GB
Network Storage ANR

Network

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,  802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G),API

Interface

Audio I/O Audio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O 2/ 1
Serial Port 1 RS485
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power DC12V±25%, AC24V±25% ,PoE (IEEE802.3 at)
Power consumption: 13.7W
Dimensions (L × W × H) 305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”)
Weight 1.65 kg (3.6lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP67
Reset Button Supported
