Network cameras

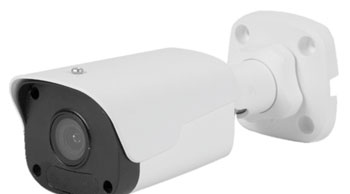

MG M185IPC-2MPLPF40(60)M-D-IR 2MP Mini Fixed Bullet Network Camera V1.0

  • Day/night functionality
  • SmartIR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%

Camera
Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4.0mm 66.7 26.7 13.3 6.7


Angle of View(H) 86.5°
Angle of View (V) 44.1°
Angle of View (O) 106.4°
Adjustment angle
Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°


Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F2.0，AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 30m (98 ft) IR range
WDR 120dB

Video


Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:1080P (1920*1080): Max. 25 fps;
Sub Stream:720P (1280*720): Max. 25 fps
Third Stream: CIF (352*288): Max. 25fps
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API

Interface
Network 10/100M Base-TX Ethernet

General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (L × W × H) 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Weight 0.45kg (0.99 lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67




Camera
Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens 4.0mm@F2.0
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
6.0mm 90 36 18 9


Angle of View(H) 55.4°
Angle of View (V) 30.2°
Angle of View (O) 68.1°
Adjustment angle
Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°


Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F2.0，AGC ON)
0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 30m (98 ft) IR range
WDR 120dB

Video


Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:1080P (1920*1080): Max. 25 fps;
Sub Stream:720P (1280*720): Max. 25 fps
Third Stream: CIF (352*288): Max. 25fps
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas

Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API

Interface
Network 10/100M Base-TX Ethernet

General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (L × W × H) 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Weight 0.45kg (0.99 lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67
