Our Products
MG M185IPC-2MPF40 (60)B-IR 2MP Mini Fixed Bullet Network Camera V1.4 MG M185IPC-2MPDPF36(60)-IR 4MP WDR Network IR Mini Bu MG M185IPC-2MPDPZ28-IR 4MP VF Network IR Bullet Camera V1.0 MG M185IPC-2MPDPZ28-IR 4MP VF Network IR Bullet Camera MG M185IPC-2MPHDUPZ-IR 2MP WDR Starlight AF Network IR Bullet Camer MG M185IPC-2MPLPF40(60)M-D-IR 2MP Mini Fixed Bullet Network Camera V1.0 MG M185IPC-2MPO28-IR 2MP VF Network IR Bullet Camera V2.3 MG M185IPC-2MPP-C-IR 2MP VF Network IR Bullet Camera V2.1 MG M185IPC-2MPZ28-IR 2MP Motorized VF Network IR Bullet Camera V2.1 MG M185IPC-2MUPF40 (60)C-IR 2MP Starlight Network IR Mini Bullet Camera V2.2 MG M185IPC-2MX10-IR 2MP WDR Starlight AF Network IR Bullet Camera V2.3_
MG E285IPC-2MPLVSPF28(40)-D-IR 2MP Vandal MG E285IPC-2MPVSPF28(40)-C 2MP Vandal-resistant Fixed Dome Network Camera V2.2 MG M285IPC-2MPDVPF16-IR 4MP Fisheye Fixed Dome Network Camera V1.0- MG M285IPC-2MPDVPF28 (40)-C 2MP WDR Vandal-resistant Network IR Fixed Dome MG M285IPC-2MPF28 (40)C-IR 2MP Fixed Dome Network Camera V2.2 MG M285IPC-2MPF28(40)(60)B-IR 2MP Fixed Dome Network Camera V1.4 MG M285IPC-2MPF28(40)(60)MB-IR 2MP Fixed Dome Network Camera V1.4 MG M285IPC-2MPF28(40)-IR Vandal-resistant Network IR Fixed Mini Dome Camera_V2.2 MG M285IPC-2MPF28(40)MC-IR 2MP Fixed Dome Network Camera V2.1 MG M285IPC-2MVZ28-IR 2MP WDR (Motorized)VF Vandal-resistant Network IR Fixed Dome Cam MG M588IPC-2MPX33-IR 3MP 33x IR Network PTZ Dome Camera V1.0
Broucher
NVR

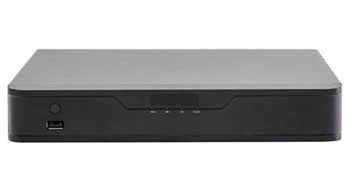

MG NVR31E Series V3.05
- Support Ultra 265/H.265/H.264 video formats
- 4/8/16-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
- HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 1 SATA HDD up to 8 TB
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| MODEL | NVR3104E | NVR3108E | NVR3116E |
Video/Audio Input |
|||
| IP Video Input | 4-ch | 8-ch | 16-ch |
| Two-way Audio Input | 1-ch, RCA | ||
Network |
|||
| Incoming Bandwidth | 40Mbps | 60Mbps | 80Mbps |
| Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
| Remote Users | 128 | ||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
Video/Audio Output |
|||
| HDMI/VGA Output |
HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Audio Output | 1-ch, RCA | ||
| Synchronous Playback | 4-ch | 8-ch | 16-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 | |
Decoding |
|||
| Decoding format | Ultra 265, H.265, H.264 | ||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
| Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 | ||
Hard Disk |
|||
| SATA | 1 SATA interface | ||
| Capacity | up to 8TB for each disk | ||
Smart |
|||
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | ||
| VCA Search | Face search, Behavior search | ||
| Statistical Analysis | People counting | ||
External Interface |
|||
| Network Interface | 1 RJ-45 10M/100M Self-adaptive Ethernet Interface | ||
| USB Interface | Rear panel: 2 x USB2.0, Front panel: 1 x USB2.0 | ||
| Alarm In | 4-ch | ||
| Alarm Out | 1-ch | ||
General |
|||
| Power Supply |
12V DC Power Consumption: ≤ 8 W( without HDD ) |
||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||
| Dimensions(W×D×H) | 260mm×240mm×44mm (10.2"×9.4" ×1.7") | ||
| Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) | ||
