Network cameras

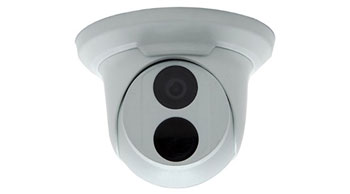

MG M285IPC-2MPF28 (40)C-IR 2MP Fixed Dome Network Camera V2.2
- Day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor mode
- ONVIF Conformance
Camera |
|
| Sensor | 1/2.7", progressive scan,2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F1.8 |
| Angle of View(H) | 109.9° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) |
| 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >55dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
Video |
|
| Video Compression | Ultra 265,H.265, H.264,MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; |
| Sub Stream: 2MP (1920×1080): Max. 30 fps; | |
| Third Stream:D1 (720×576): Max. 30 fps; | |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
Smart |
|
| Behavior Detection | Intrusion, cross line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF(Profile S), API |
Interface |
|
| Network | 1 RJ4510M/100M Base-TX Ethernet |
General |
|
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.33 kg (0.73lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
Camera |
|
| Sensor | 1/2.7", progressive scan,2.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.8 |
| Angle of View(H) | 84.8° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination |
Colour: 0.02 Lux (F1.8, AGC ON) |
| 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >55dB |
| IR Range | Up to 30m (98 ft) IR range |
| Defog | Digital Defog |
| WDR | DWDR |
Video |
|
| Video Compression | Ultra 265,H.265, H.264,MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; |
| Sub Stream: 2MP (1920×1080): Max. 30 fps; | |
| Third Stream:D1 (720×576): Max. 30 fps; | |
| 9:16 Corridor Mode | Supported |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
Smart |
|
| Behavior Detection | Intrusion, cross line, motion detection |
| Intelligent Identification | Face detection, Defocus, Scene Change |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Network |
|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF(Profile S), API |
Interface |
|
| Network | 1 RJ4510M/100M Base-TX Ethernet |
General |
|
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Weight | 0.33 kg (0.73lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
